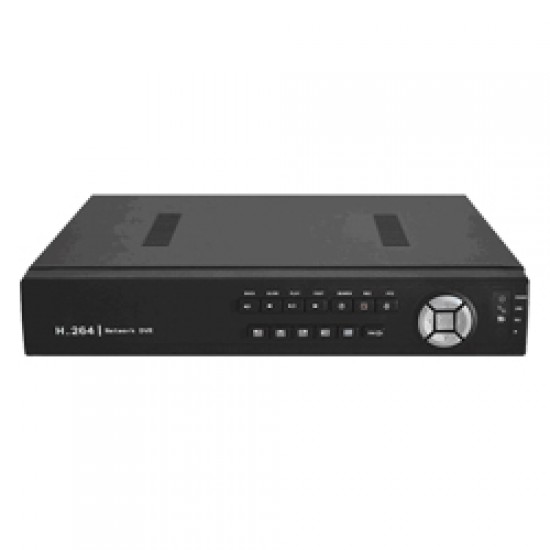

SILICON DVR SDVR-9214IC

Model

SDVR-9214IC

System

Operating system

Embedded LINUX operating system

System resource

Multi-channel real-time recording synchronously, multi-channel real-time playback, multi-channel multi-user network operation, USB back up.

Operation interface

16 bit real color GUI interface support mouse operation

Display

Display screen

（Take all analog input as an example, others are depended on the selected channel mode）

Video standard

1/4 screen

PAL（625 lines，50fps）；NTSC（525lines，60fps）

Video

Image encode

H.264(High Profile)

Monitor quality

Monitor：D1；VGA：1080P ；HDMI：1080P

Playback quality

Max support 1080P under HVR and NVR mode；Max support D1 under DVR  mode：

Encode capability

4CH 960H real time(DVR mode)

Decode capability

4CH 960H real time(DVR mode)

Multi-mode video input

DVR mode :4 *960H

HVR mode:2 *D1+(1*1080P+1*720P)

NVR mode:8*960H / 4*720P / 2*1080P / 1*720P+7*D1 / 1*1080P+1*720P+2*D1

Motion detection

Each channel can set 192（16*12）detection area；can set multi-level of flexibility (for local analog channel only)

Audio compression

G.711A

Audio

Record mode

Manual、alarm、motion detection、timing

Record and playback

Local playback

1-4ch playback synchronously; Under the mode of DVR, Max support 4CH 960H real time playback synchronously

Video search

Time、date、event、channel search

Space occupation

Video：CIF 4~5G/day*channel， D1 16~20G/day*channel；
 audio：691.2M/day*channel

Storage and back up

Video storage

Local HDD 、Network

Back up mode

Network backup、USB portable HDD、USB DVD-RW

Video input

4CH BNC

Interface

Video output

1CH BNC，1CH VGA，1CH HDMI

Audio input

4CH RCA

Audio output

1CH RCA

Alarm input

2CH

Alarm output

1CH

Network port

RJ45 10M/100M self-adaptive Ethernet port

PTZ control

1 RS485；support multi kinds of PTZ Protocol

USB port

2*USB2.0

HDD port

1 SATA（each max support 2048G）

Wireless port

3G、WIFI(extension via USB port)

Tour

Yes

Other

Remote controller

Yes

Power

12V/2A

Dimension

260(Length) x 234(Width) x 45(Height)

Gross Weight

1.5kg

Box Size

38 cm × 9 cm × 27 cm
