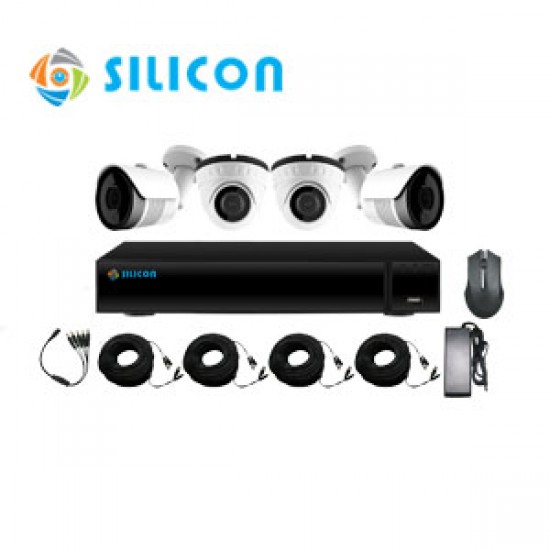

SILICON DVR KIT AHD RS-950304-50DE

Model NO.

RS-950304-50DE

Package

DVR

1x RS-950304-50DE

Camera

2 x KBR25AHD500FK,  2 x KDSL20AHD500FK

Cable

4x 18m BNC+DC Cable, 1x (1 to 5CH power cable splitter)

Mouse

1xUSB 2.0 Mouse

Adaptor

1xDC12V/4A

Weight

7.9kg/SET

Camera Model

RS-950304-50DE

RS-950304-50DE

Image Sensor

K03

DSP

FH8538

Image Resolution

5MP /4MP /1080P / 960H

Effective Pixels

2704H x 1950V

TV System

PAL/NTSC

Electronic Shutter

1/25s~1/50,000s , 1/30s~1/60,000s

S/N Ratio

≥50dB

Scanning System

Progressive Scan

Lens

Focus Length

3.6mm/F2.0

Focus Control

Fixed

Lens Type

Fixed

Pixels

5M Pixels

Auto Iris Support

NO

Night Vision

Infrared LED

42µ x 2PCS

14µ x 18PCS

Infrared Distance

30M

20M

IR Status

Under 10 Lux by CDS

IR Power On

CDS Auto Control

Camera Features

Day/Night

YES

OSD Menu Language

YES

White Balance

AUTO / MANUAL

Gain Control

AUTO

Noise Reduction

3DNR

Picture Adjustment

YES

DWDR

YES

OSD  Support

YES

UTC

YES

General

Housing

Metal

Bracket

NO

Dual Voltage

NO

IR Cut Filter

YES

Heater

NO

Operation Temperature

-10℃ ~ +50℃ RH95% Max

Storage Temperature

-20℃ ~ +60℃ RH95% Max

Power Source

DC12V±10%, 500mA

Dimension

157(W) x 70(H) x 66(D)mm

ï¿ 94.5 x 76(H) mm

Weight

650g

450g

Model

RS-950304-50DE

System

Main Processor

HI3520DV300

Operating System

Embedded LINUX

Video

Input

Analog: 4*(TVI/AHD: 5M;  AHD/TVI/CVI: 4M;  AHD/TVI: 3M;  AHD/TVI/CVI: 1080P/720P;  Analog: 960H) Analog+Network: 2*Analog(1080P)+7*network(MAX 5MP)
Network: 16*5MP/4MP/3MP/1080P/960P/720P(Total incoming bandwidth ≤50M)

Input

4CH BNC

Signal Type

Analog/AHD/CVI/TVI 2.0/Network

Output

1HD,1 VGA, 1CVBS

Audio

Input

4 Channel, RCA

Two-way Audio

NO

Output

1 Channel, RCA

Alarm

Sensor Input

NO

Output

NO

Motion Detection

4 Channel(max 9 Channel in pure network mode)

Trigger Events

Recording,  Email, Screen tips, Buzzer

Email Alarm

Send Image to The Designated E-mail

PTZ

Interface

RS485

Protocol

Pelco-D, Pelco-P

Baud Rate

110~921600

Address

0~255

Display

VGA

Resolution: 1920 × 1080P /60Hz, 1280 × 1024 /60Hz, 1280 × 720 /60Hz,1024 × 768 /60Hz

HD

Resolution: 1920 × 1080P /60Hz, 1280 × 1024 /60Hz, 1280 × 720 /60Hz,1024 × 768 /60Hz

Display Split

16 Channel/9 Channel/4 Channel / 1Channel

Privacy Masking

1 Rectangular Zones (Each camera)

OSD

Camera title, Time, Video loss, Alarm, Motion detection, Recording

Recording

Video Compression

H.264/H.264+

Audio Compression

G.711u

Resolution

5MP(2592×1944),5MP_HALF(1296×1944),4MP(2560×1440),4MP_HALF(1280×1440),3MP(2048×1536),
1080P(1920×1080),720P(1280×720),960H(P:960×576/N:960×480)

Video Quality

worst/worse/ordinary/well/best

Record Rate

Analog:  PAL:5MP(2592×1944 4*6fps),5MP_HALF(1296×1944 4*10fps),4MP(2560×1440 4*8fps),4MP_HALF(1280×1440 4*15fps),3MP(2048×1536 4*9fps),1080P(1920x1080 4*15fps),720P(1280×720 4*25fps), 960H(960×576 4*25fps)
NTSC:5MP(2592×1944 4*6fps),5MP_HALF(1296×1944 4*10fps),4MP(2560×1440 4*8fps),4MP_HALF(1280×1440 4*15fps),3MP(2048×1536 4*9fps),1080P(1920x1080 4*15fps),720P(1280×720 4*25fps), 960H(960×480 4*25fps) Pure IP: PAL: 5MP@5×25fps,4MP@7x25fps,3MP@7×25fps,1080P@12×25fps,960P@16×25fps,720P@16×25fps,D1@16×25fps  NTSC: 5MP@5×30fps,4MP@7×30fps,3MP@7×30fps,1080P@12×30fps, 960P@16×30fps, 720P@16×30fps, D1@16×30fps

Record Mode

ManualTimerMotion Detection

Playback & Backup

Decode Capability

4CH 1080P@30fps

Sync Playback

Pure Analog: 4CH 5M@6fps, 4CH 4M@7fps, 4CH 3M@9fps, 4CH 1080p@15fps
Mix Mode:  3CH 1080p@15fps,  1CH 5M@6fps, 1CH 4M@7fps, 1CH 3M@9fps
Pure IPC:  1CH 5MP@30fps, 1CH 4MP@30fps, 1CH 3M@30fps, 4CH 1080P@30fps, 4CH 960P@30fps, 4CH 720P@30fps

Remote Playback

4 Channel / 1Channel

Search Mode

ALL, Channel, Manual, Time, Date, Motion Detection

Playback Functions

Play, Pause, Stop, Fast play, Rewind

Smart Phone Playback

4 Channel

Backup Mode

USB Device/Network

Network

Interface

1 RJ45 10M/100M Adaptive Ethernet Interface

Network Functions

TCP/IP, HTTP, UPnP, DNS, NTP, SMTP, PPPoE, DHCP, FTP, DDNS, RTP, RTSP, RTCP

DDNS

Dyndns, changeip, no-ip, Oray, A-PRESS, MYQSEE, SKDDNS, SMART-EYES

Web Browser

IE8-11, Google Chrome (IE Tab), Firefox (IE Tab)

CMS Software

Support Windows 7/Windows 8/Windows 10

Extra Stream

D1/CIF/(1~25fps)

Smart Phone

iPhone, ipad,  Android ,Android pad

Hard Disk Driver

Interface Type

1 SATA Interface

Capacity

2.5"/3.5" SATA, Up to 6TB

General

Language

Chinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian, Farisa,
German, French, Portuguese, Turkic, Spanish, Italian, Hungarian, Romanian, korean, Dutch, Greek

UTC Control

YES

USB Interface

2 USB 2.0 Interfaces

Power consumption

DC 12V  ≤6W (Without Hard Disk)

Working Environment

'-10~55℃/10~90%

Dimension (W×D×H)

260*215*43(mm)

Weight

2kg (Without HDD)
