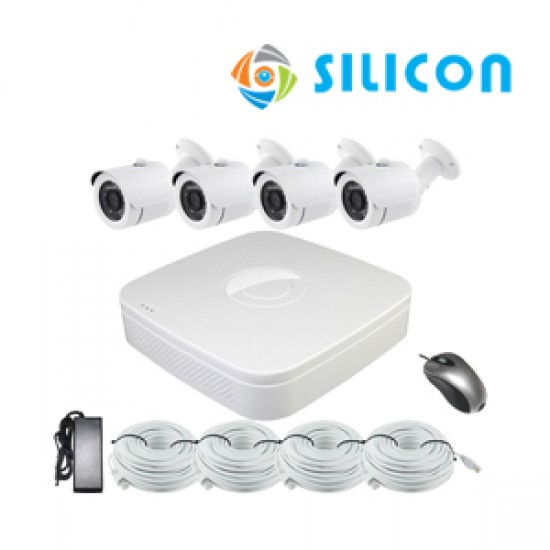

SILICON NVR KIT PA9104RH20

Model

 NVRPA9104RH20

Package

NVR

1x CK-PA9104POEF

Camera

4x KIP-200R20H

Cable

4x 18m CAT5 Cable

Mouse

1xUSB 2.0 Mouse

Adaptor

DC15V/6A

Weight

6.58kg/SET

Camera Model

KIP-200R20H

Image Sensor

IMX323

Main processor

HI3516CV200

Resolution

1080P

Effective Pixels

1985(H)*1105(V)

Compression

H.264/JPEG/AVI

TV System

PAL/NTSC

Electronic Shutter Time

Auto: PAL 1/25-1/10000Sec; NTSC 1/25-1/10000Sec

S/N Ratio

≥52dB

Scanning System

Progressive

Video Output

Network

Lens

Focus Length

3.6mm

Focus Control

Fixed

Lens Type

Fixed

Pixels

3M Pixels

Night Vision

Infrared LED

14µ x 18PCS

Infrared Distance

20M

IR Status

Under 10 Lux By CDS

IR Power On

CDS Auto Control

Network

Ethernet

RJ-45 (10/100Base-T)

Protocol

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, SMTP

ONVIF

Support ONVIF 2.4

P2P

YES, Support QR Code

POE

YES

WIFI

N/A

Video Delay

0.3S (Within the Lan)

Main Stream

1920*1080@25fps

Sub Stream

720*480@25fps

Tri Stream

352*288@25fps

IE Brower

IE8-11, Google Chrome, Firefox, Safari, Mac Safari

Smart Phone

iPhone, iPad, Android, Android Pad

Camera Features

Day/Night

Color/ B&W (IR-CUT )

Image Config

Saturation/Brightness/Contrast /Sharpness, Mirror, 3D NR , White Balance, BLC, FLK(Flicker Control)

Defog  Mode

Support

Motion Detection

Support

Privacy  Masking

3 Rectangular Zone

WDR

YES, WDR

Recording Mode

NVR/NAS/CMS/Web

Language

Chinese Simplified, Chinese Traditional, English, Bulgarian, Polish, Farsi, German, Russian,
 French, Korean, Portuguese, Japanese, Turkish, Spanish, Hebrew, Italian,Nederlands

General

Housing

Metal

Anti-cut Bracket

NO

IR Cut Filter

YES

Operation Temperature

-20℃ ~ +60℃ RH95% Max

Storage Temperature

-20℃ ~ +60℃ RH95% Max

Power Source

DC12V±10%, 500mA

Dimension

ï¿ 94 x 69(H) mm

Weight

450g

NVR Model

CK-PA9104

System

Main Processor

ARM Cortex A9 Processor(HI3520D)

Operating System

Embedded LINUX

Video

Input

9 Channel, Support 1920×1080, 1280×960, 1280×720 ect...

Output

1 VGA, 1 HDMI

Alarm

Sensor Input

NO

Output

NO

Motion Detection

9 Channel

Email Alarm

Support

Display

VGA

Resolution: 1024×768、1280×720、1280×1024

HDMI

Resolution: 1080P(1920×1080)  720P:(1280×720)

Display Split

9 Channel /4 Channel / 1Channel

Digital Zoom

YES

OSD

Camera title, Time, Video loss, Recording, Motion Detection

Recording

Video Compression

H.264

Resolution

1080P(1920×1080) / 960P(1280x960) / 720P(1280×720) / D1 (704×576/704×480)

Record Rate

PAL :1080P@225fps, 960P@225fps, 720P@225fps, D1@225fps
 NTSC:1080P@270fps, 960P@270fps, 720P@270fps, D1@270fps

Record Mode

ManualTimerMotion Detection

Playback & Backup

Local Sync Playback

1x1080P

Remote Sync Playback

yes

Search Mode

ALL, Channel, Time, Date, Motion Detection

Playback Functions

Play, Pause, Stop,  Fast play, Slow play

Backup Mode

USB Device/Network

Network

Interface

1 RJ45 10M/100M Adaptive Ethernet Interface

Network Functions

TCP/IP, ICMP, HTTP, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, SMTP,UPNP

Onvif Version

Support Onvif 2.4

Web Browser

IE8-11, Google Chrome (IE Tab), Firefox (IE Tab)

CMS Software

Support Windows XP / Windows Vista / Windows 7/ Windows 8

Cloud Support(P2P)

Yes

Smart Phone

iPhone, iPad,  Android, Android PAD

Hard Disk Driver

Interface Type

1 SATA Interface

Capacity

2.5"/3.5" SATA, Up to 6TB

General

Language

Chinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian, Farisa,German,
 French, Portuguese, Turkic, Spanish, Italian, Hungarian, Romanian,Nederlands,Greek

USB Interface

2 USB 2.0 Interfaces

Power Supply

DC15V/6A

Working Environment

-10~55℃/10~90%

Dimension(W×D×H)

215*215*53mm

Weight

2.0KG (without HDD)
