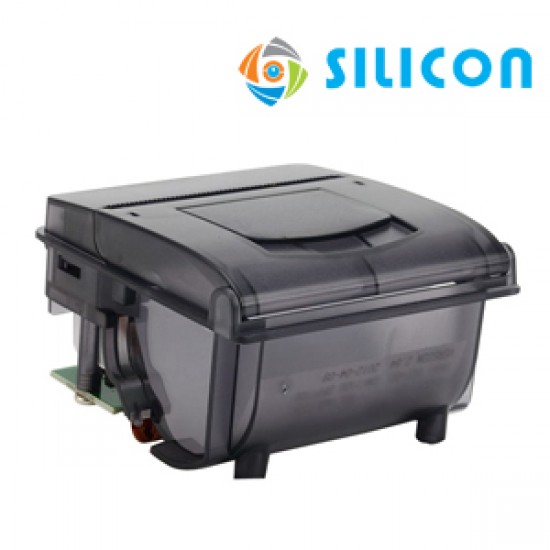

Silicon Panel Printer SP-402

Model

Panel Printer SP-402

Paper Working

Loading Way

Easy

Cutting Way

Divulsion (Dentiform)

Printer performance

Print Method

Direct Thermal Print and Auto Paper Feed

Printing Density

384 dots/line

8 dots/mm

Printing Width

48 mm

Max Printer Speed

85 mm/s (max.)

Dot Distance

0.125 mm

Drawing/Barcode

Word Size (W×H mm)

0.75×1

Dots)

16 lattice: 8×16; 24 lattice: 12×24

ASCⅡ Size (W×H mm)

16 lattice: 2×4; 24 lattice: 1.5×3

Drawing/Barcode

Suitable

Testing Method

Lacking Paper Testing

Photoelectricity Sensor

Control System

Printer Interface

TTL/RS232

Buffer

32k

Command System

ESC Printer Command/WH Printing Command

Power

Working Voltage

DC3.5V--9V (from 7.2-5v, with Highest Speed
and Excellent Effect!)

Average Electricity

Less Than 1.5A

Max Electricity

Less Than 3A

Printer Mechanism

Printing Head Lifespan

50km

Paper

Paper Item

Thermal Paper

Paper Width

58mm

Papaer Thickness

65±5um

Diameter of Paper Roll

30mm

Physics Specification

Environment Adaptability

0～55°C; -20～55°C

10～90%RH

Storage Temperature

–25～70°C

10～90%RH

Dimension (W×H×D mm)

76.8mm*77.4mm*43.5mm
