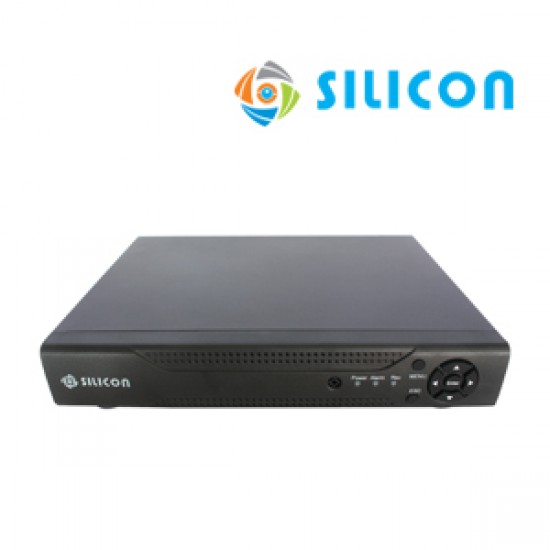

SILICON DVR AHD HVR-2604N

Model

HVR-2604N (4 CH)

Video Compression

Standard H.264

Video Input

4CH BNC

Video Output

VGA 1CH ; HDMI 1CH

Audio Input

RCA 4CH

Audio Output

RCA 1CH

Preview Resolution

1080N / 720P / 960H

Multi-Channel playback

4CH x 1080N @12 fps / 4CH x 720P @ 25 fps

Multi Mode

Analog Mode: 4*1080N, 4*AHD-M, 4*AHD-L

Mixing Mode: 2*AHD-M  (Analog)+ 2*720P (Network)

Network Mode : 4*720P, 4*1080P, 8*720P, 8*1080P, 1*1080P

Video Frame Rate

PAL: 25 fpsï¼›NTSC :30 fps

Storage Capacity

1 SATA Hard Disk Interface (Up to 4TB)

Backup

USB 2.0 (such as U disk, USB Drive) and Network

Support Software

Static, Dynamic IP and DDNS, P2P, Support IE and Special Client

Support Mobile

iPhone,  Android

Interface

1xPTZ (RS485), 2×USB, 1xRJ45, 1xIR Controller

Mode Power Input

DC 12 V / 2A

Working Temperature

-10℃ — 55℃

Weight

1200 gr

Dimension (LxWxH)

31×7.5×32.5 cm
