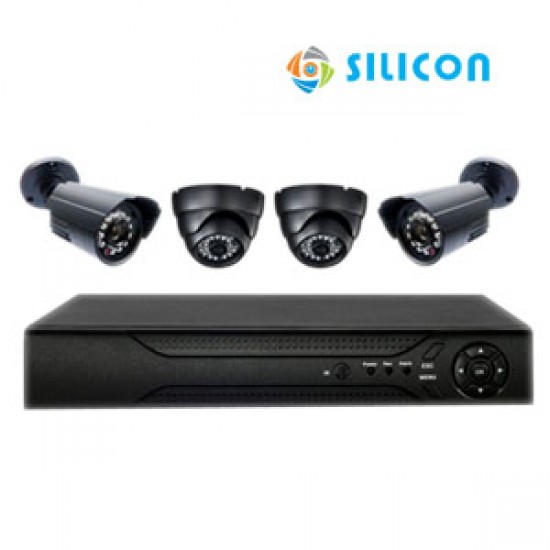

SILICON DVR KIT AHD 4AKIT-003A-10EL

DVR AHD SPECIFICATION

Model

TR-005-4CHAZ

System

Main processor

Technical grade embedded microprocessor VOC736

Operating system

Embedded LINUX operating system

System resource

Multi-channel real-time recording synchronously, multi-channel real-time playback, multi-channel multi-user network operation, USB back up.

Interface

Operation interface

16bit real color GUI interface support mouse operation

Display screen

1/4 screen (take analog channel as an example, other is base on the selected channel mode)

Video

Video standard

PAL/NTSC

Image encode

H.264(High Profile)；JPEG

Monitor quality

Monitor：D1；VGA，HDMI：High definition（support 1920*1080, 1280*720,1440*900,1280*1024, 1024*768、800*600）

Playback quality

1080N/720P

Encode capability

4*1080N

Decode capability

4*1080N

Multi-mode video input

AHD:4*1080N

Motion detection

Each channel can set 192（16*12）detection area；can set multi-level of flexibility (for local analog channel only)

Audio

Audio compression

G711A

Bidirectional talk

support

Record and playback

Record mode

manual>alarm>motion detection>timing

Local playback

1-4ch playback synchronously (take local analog input for example, other is depended on the selected channel mode)

Video search

time、date、event、channel search

Storage and back up

Space occupation

Video：CIF 4~5G/day*channel， D1 16~20G/day*channel；
 audio：691.2M/day*channel

Video storage

Local HDD 、Network

Back up mode

Network backup、USB portable HDD、USB imprint、SATA imprint

Interface

Video input

4CH BNC(1.0Vp-p,75Ω)

Video output

1CH VGA，1CH HDMI

Audio input

1CH RCA

Audio output

1CH RCA(200-3000mV,5KΩ)

Alarm input

N/A

Alarm output

N/A

Network port

RJ45 10M/100M self-adaptive Ethernet port

PTZ control

N/A

USB port

2*USB2.0

HDD port

1 SATA ports（each max to6TB）

Wireless port

N/A

Other

Power

12V/2A

Consumption

<15W（not including HDD)

Temperature

0℃-＋55℃

Humidity

10%－90%

Atmosphere pressure

86kpa－106kpa

Dimension

L255*W220*H40MM

Weight

1.2KG

CAMERA SPECIFICATION

Model

RSA-002XA10BL

RSA-002NA10BL

Sensor

1.0M Pixel

Lens Mount

3.6mm Lens

Day/Night Mode

Auto (ICR) / Color / B&W

Number of IR LEDs

￠5 24pcs LED

Night Vision

15-20M

Operation Temperature

-10℃ ~ +50℃ RH95% Max

Storage Temperature

-20℃ ~ +60℃ RH95% Max

Material

Plastic Dome camera

Bullet Camera, IP66

Power Source

DC12V±10%, 500mA
