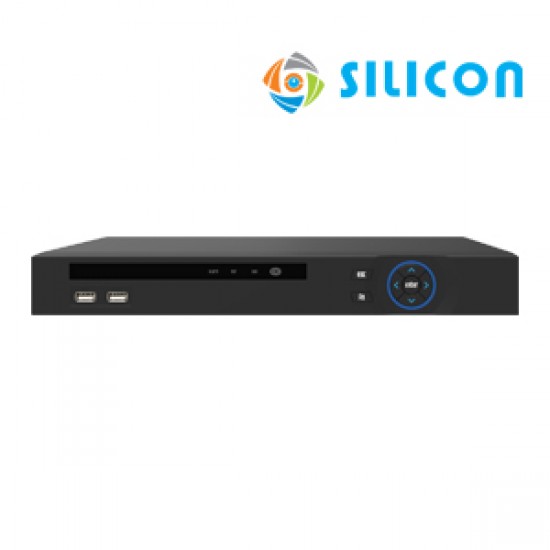

SILICON NVR CK-A9225PN

Model

CK-A9225PN

Operating System

LINUX

Compression Standard

Standard H.264

IPC Input

25ch(1920×1080, 1280×960, 1280×720 etc.)

HDMI Output

1ch, HDMI Interface

Resolution:1920×1080p/60Hz

VGA Output

1ch, VGA Interface

Resolution:1920x1080p/60Hz

Preview Resolution

25ch×D1/16ch×D1/9ch×D1/4ch×D1/1ch×1080p

Video Resolution

25ch×1080p/25ch×960p/25ch×720p, etc. (According to IPC Input)

Video Frame Rate

PAL: 25 frames/sec

NTSC: 30 frames/sec.

Local Playback

4×1080p

Backup

Support Local, Network Backup

Hard Disk

Two SATA Hard Drives (Max. 8TB)

Network Interface

1 RJ-45 Port(10/100/1000Mbps)

Support Mobile

iPhone, iPad, Android

Browser

IE8.0 and Above, Firefox, Google

Support Agreement

ONVIF 2.4

USB Interface

Two USB2.0 Interface

Multi-Operation

Support for Recording, Playback, Network, Backup, Mobile Monitoring and Interface Operation

Operating Voltage

DC 12V

Operating Temperature

-10℃ — 55℃

Humidity

10%～90%

Power Consumption

≤ 60 W

Gross Weight

3kg

Box Size

8 cm × 39 cm × 38 cm
