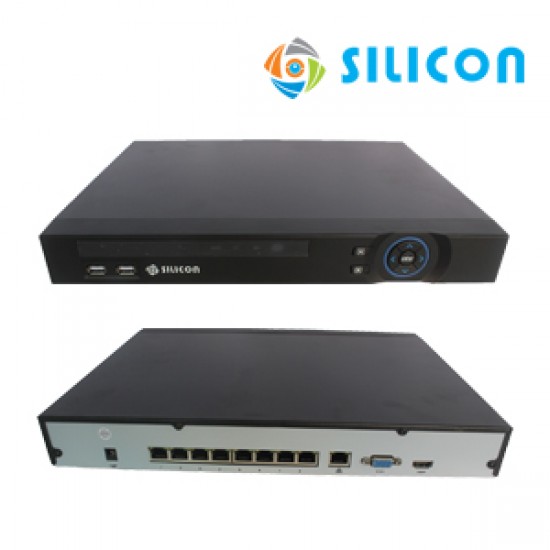

SILICON NVR CK-A9108 POE

Model

9CH

Operating system

LINUX

Compression Standard

Standard H.264

IPC Input

9CH(1920×1080, 1280×960, 1280×720 etc.)

HD Output

1CH，HD port; resolution:1920x1080P/60Hz

VGA  Output

1CH，VGA port; resolution:1920x1080P/60Hz

Preview resolution

9xD1/1x1080P(single channel for the IPC main stream, multi-channel for sub-stream)

Video Resolution

9CH×1080P/ 9CH×960P/4CH×720P, etc.（according to IPC input）

Video Frame Rate

PAL: 25 frames / sec; NTSC: 30 frames / sec.

Local Playback

Single-channel playback 1x1080P

Backup

Support local, network backup

Hard disk

One SATA hard drive (maximum 4TB)

Network interface

1 RJ-45 port(10/100Mbps)

Support mobile

iPhone, iPad, Android

Browser

IE8.0 and above,Firefox,Google

Support Agreement

ONVIF2.4

USB Interface

Two USB2.0 interface

Multi-operation

Support for recording, playback, network, backup, mobile monitoring and interface operation

Dual-stream

Yes

Operating Voltage

DC 48V

Operating Temperature

-10℃ — 55℃

Humidity

10%～90%

Power Consumption

≤ 60W

Box Dimension

39 cm × 8.5 cm × 38.5 cm

Gross Weight

3kg
