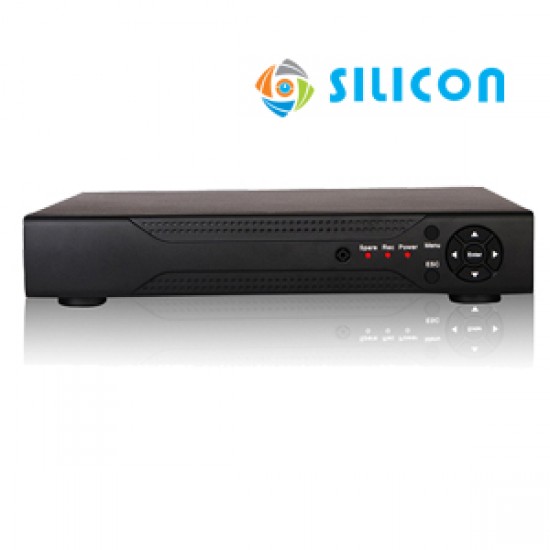

SILICON NVR CK-H9104P

Model

CK-H9104P

System

Main Processor

ARM Cortex A9 Processor(HI3520D)

Operating System

Embedded LINUX

Video

Input

4CH (1920x1080, 1280×960, 1280×720, etc)

Output

1 VGA, 1 HDMI

Alarm

Sensor Input

NO

Output

NO

Motion Detection

4 Channel

Email Alarm

Support

Display

VGA

Resolution: 800×600, 1024×768, 1280x720, 1280×1024, 1920x1080

HDMI

Resolution: 1080P(1920×1080) 720P:(1280×720)

Display Split

4 Channel / 1Channel

Digital Zoom

NO

OSD

Camera title, Time, Video loss, Recording, Motion Detection

Recording

Video Compression

H.264

Resolution

4CH×1080P/4CHx960P/4CH×720P, etc

Record Rate

PAL :1080P@100fps, 960P@100fps, 720P@100fps, D1@100fps
NTSC:1080P@120fps, 960P@120fps, 720P@120fps, D1@120fps

Record Mode

ManualTimerMotion Detection

Playback & Backup

Local Sync Playback

1x1080P

Remote Sync Playback

YES

Search Mode

ALL, Channel, Time, Date, Motion Detection

Playback Functions

Play, Pause, Stop, Rewind, Fast play, Slow play

Backup Mode

USB Device/Network

Network

Interface

1 RJ45 10M/100M Adaptive Ethernet Interface

Network Functions

HTTP, TCP/IP, IPv4, UPNP, RTSP, UDP, SMTP, NTP,
DHCP, DNS, DDNS, FTP, IP Search, P2P

Onvif Version

Support Onvif 2.4

Web Browser

IE6-11, Google Chrome (IE Tab), Firefox (IE Tab)

CMS Software

Support Windows XP / Windows Vista / Windows 7/ Windows 8

Cloud Support(P2P)

Yes

Smart Phone

iPhone, iPad, Android, Android PAD

Hard Disk Driver

Interface Type

1 SATA Interface

Capacity

Up to 4TB capacity

General

Language

Chinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic,
Bulgarian, Farisa, German, French, Portuguese, Turkic, Spanish, Italian, Hungarian, Romanian, korean, Dutch, Greek

USB Interface

2 USB 2.0 Interfaces

Power Supply

DC12V/2A

Working Environment

-10~55℃/10~90%

Dimension(W×D×H)

260*190*43(mm)

Weight

2.0KG (without HDD)
