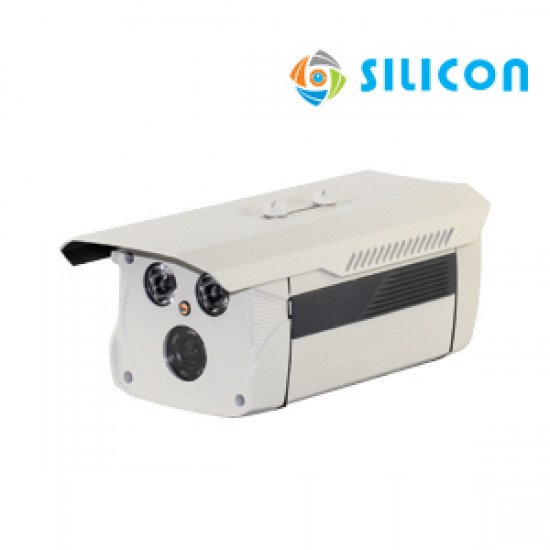

SILICON IP CAMERA RSP-300H

Model

RSP-300H

Solution

IMX322+S2L33M

Description

A 2MP IP CAMERA

Sensor type

1/2.8" 2.43 Megapixel CMOS Image sensor.

Minimum Illumination

0.01 lux

S/N Ratio

>50db

Shutter

1—1/10000s(adjustable)

Lens

3.0mm

Lens interface type

C/CS

WDR

WDR

Digital noise

3D DNR

Day/Night

ICR-infrared filter

Video Compression

H.264

Bit Rate

64-12000Kbps

Max image size

1920×1080

Frame Rate

50Hz:25fps(1920×1080)
60Hz:30fps(1920×1080)

Image setting

Brightness, contrast, saturation, sharpness can be adjusted

Backlight Compensation

Support

Storage function

FTP、Local、NVR、SMTP

Onvif

Onvif 2.4（port:8999）

Intelligent alarm

Motion detection、Privacy

Protocol

TCP/IP、HTTP、DHCP、FTP、DNS、DDNS、RTSP、NTP、SMTP

General function

Single/Dual/Tri-Stream/Mirror

Communication interface

RJ45（10M/100M）Adaptive Ethernet port

Temperature

-20℃～55℃

Humidity

0%-90%RH Without Condensation

Power

DC12V±5% / PoE(802.3af)

Size

Weight

Box Size

38×38mm

1,5 kg

17 cm  × 12 cm × 29 cm
