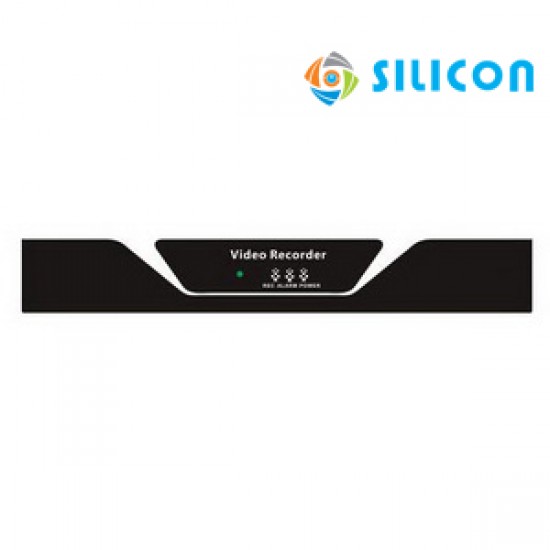

SILICON DVR AHD RS-9608AHD

Model

RS-9608AHD

Video Compression

H.264

Video System

NTSC/PAL

Operation System

Linux(embedded)

Video-input /output

8CH inputs / VGA and HDMI output

Audio input /output

4CH inputs /1CH output(RCA)

Display

resolution

PAL:1280*720P Or 960*576/  NTSC:1280*720P Or 960*480

feature

single/ Quad/S.E.Q.

Record

resolution

PAL:1280*720P Or 960*576 /  NTSC:1280*720P Or 960*480

speed

PAL:25fps(each ch) /  NTSC: 30fps(each ch)

Recording Mode

Continuous/Manual/Motion detect

Playback Channel

Local DVR: 1~4ch
PC/MAC: 1~4ch
Smart Phones: 1ch (using app)

Playback speed（simultaneously 4CH Record ）

PAL:720P or 960H:25fps(each ch) / NTSC: 720P or 960H:30fps(each ch)

Sensor & Alarm I/O

No

i CLOUD

Yes

Network Type

Lan, DHCP, and DDNS

E-mail Notifications

Yes, Support

HDD interface

1 SATA HDD, up to 4TB

Multiplex Operation

live display, record, playback, backup and network

USB

2xUSB(for mouse and backup/upgrade)

PTZ Control

Built in RS485, support Pelco-P & Pelco-D

Mobile Surveillance

Support Mobile Phones based on iPhone and Android operation system

VGA

800*600,1024*768,1280*1024,1440*900,1920*1080

HDMI

1080P

IR Extender Port

No

P2P

Yes

Mobile Push

Optional (need to do with P2P together)

Power Supply

DC 12V 2A

Dimension(wxDxH)

252*213*42mm
