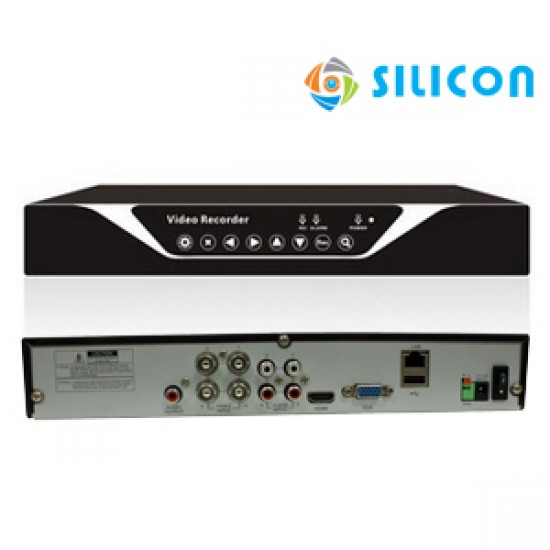

SILICON DVR AHD RS-9704AHD

MODEL

RS-9704AHD-122A

Video/Audio input

Video compression

H.264

Analog video input

4PCS BNC Port(Level: 1.0Vp-p, impedance : 75Ω)

Audio compression

ADPCM

Audio input

4PCS RCA Port(Level : 2.0Vp-p, impedance : 1kΩ)

Two-way audio input

1PCS RCA Port( line level , impedance : 1kΩ)

Video/Audio output

HDMI/VGA output

1024x768,1280*720,1280x1024

Encording resolution

D1/CIF/720P/960P/1080H

Multi-mode switch

AHD: 4CH*1080H
TVI:  4CH*1080H
Analog: 4CH*960H
IPC: 4CH*1080H

CVBS output

1PCS BNC Port(Level: 1.0Vp-p, impedance : 75Ω)

Frame rate

NTSC：1~30FPS/S；PAL：1~25FPS/S

Video bit rate

256KB/384KB/512KB/640KB/768KB/1MB/1.5MB/2MB/2.5MB/3MB/4MB/5MB/6MB/8MB

Audio output

1PCS RCA Port( line level , impedance : 1kΩ)

Audio bit rate

16kpbs

Dual-stream

YES

Stream type

combine streams/ video stream

Playback resolution

Mode 1:
4CH AHD 1080H@40fps
4CHAHD 720P@40fps
4CH*Analog 960H@40fps
Mode 2:
4CH IPC 720P@80fps

Synchronous palyback

D1/CIF/720P/960P/

Hard disk

SATA

1*SATA

eSATA

No

Capacity

each port support max 4TB HDD

External interface

Network interface

1PCS RJ45 10M / 100M adaptive Ethernet port

Serial interface

1PCS RS485

USB interface

2*USB2.0

Alarm in/out

NO

General

Power supply

DC12V

Comsumption

≤12W

Working temperature

-10℃--＋55℃

Working humidity

10％--90％

Chassis

0.8U

Dmensions(W×D×H)

255*215*45mm

Weight

0.86kg
