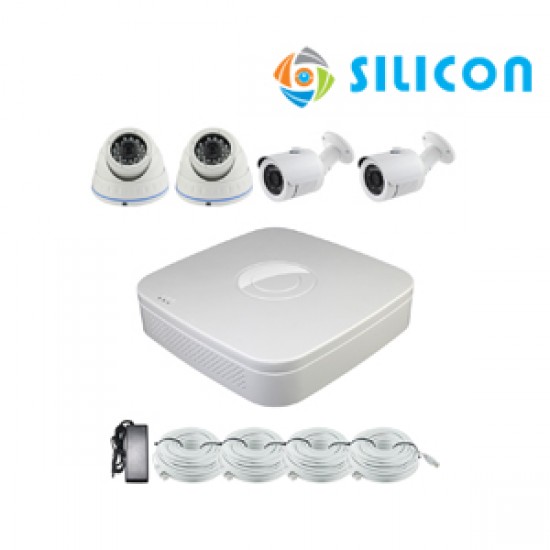

SILICON NVR KIT PA9104PKT

NVR Specification

Model

4CH

Operating system

LINUX

Compression Standard

Standard H.264

IPC Input

4CH(1920×1080, 1280×960, 1280×720 etc.)

HDMI Output

1CH，HDMI interface; resolution:1920x1080P/60Hz

VGA  Output

1CH，VGA interface; resolution:1920x1080P/60Hz

Preview resolution

4xD1/1x1080P(single channel for the IPC main stream, multi-channel for sub-stream)

Video Resolution

4CH×1080P/ 4CH×960P/4CH×720P, etc. (according to IPC input)

Video Frame Rate

PAL: 25 frames / sec; NTSC: 30 frames / sec.

Local Playback

Single-channel playback 1x1080P

Backup

Support local, network backup

Hard disk

One SATA hard drive (maximum 4TB)

Network interface

1 RJ-45 port(10/100Mbps)

Support mobile

iPhone, iPad, Android

Browser

IE8.0 and above,Firefox,Google

Support Agreement

ONVIF2.4

USB Interface

Two USB2.0 interface

Multi-operation

Support for recording, playback, network, backup, mobile monitoring and interface operation

Dual-stream

Yes

Operating Voltage

DC 15V

DC 48V

Operating Temperature

-10℃ — 55℃

Humidity

10%～90%

Power Consumption

≤ 60W

Camera Specification

Solution

IMX225+HI3518C

Description

HI 1.3MP IP camera

Sensor type

1/3" 1.37 Megapixel CMOS Image sensor.

Minimum Illumination

0.01Lux

S/N Ratio

˃50db

Shutter

1—1/10000s(adjustable)

Lens

2.8mm/3.6mm/4mm/6mm/8mm/2.8-12mm(adjustable),Lens optional

Lens interface type

C/CS

Day/Night

ICR-infrared filter

Video Compression

H.264/JPEG

Bit Rate

64-12000Kbps

Max image size

1280×960

Frame Rate

50Hz:25fps(1280×960)
60Hz:30fps(1280×960)

Image setting

Brightness, contrast, saturation, sharpness can be adjusted

Backlight Compensation

Support

Storage function

FTP、Local、NVR、SMTP

Onvif

Onvif 2.4(port:8999)

Intelligent alarm

Motion detection、Privacy

Protocol

TCP/IP、HTTP、DHCP、FTP、DNS、DDNS、RTSP、NTP、SMTP

General function

Tri-Stream/Mirror

Communication interface

RJ45（10M/100M）Adaptive Ethernet port

Temperature

-20～55℃

Humidity

0%-90%RH Without Condensation

Power

DC12V±5% / PoE(802.3af)

Size

38×38mm

Gross Weight

5.1kg

Box Size

24 cm × 25 cm × 40 cm
